Auger Clearance Errors Show Up as Sidewall Wear First

By the time the sidewall of a vertical mixer needs attention, most operators assume the auger knives are the culprit. Worn knives get the blame. The knives get changed. The wear continues. What they missed was that the real problem started earlier, in the relationship between auger diameter and tub volume, and the clearance that relationship sets between the flighting edge and the steel wall it works next to.

Auger clearance errors are quiet. They do not trigger a warning light. The machine keeps running. Feed comes out. It is only when you are grinding through tractor hours, watching mix times creep up, or finding scalloped wear patterns on the lower sidewall that the damage announces itself. At that point you are already well behind.

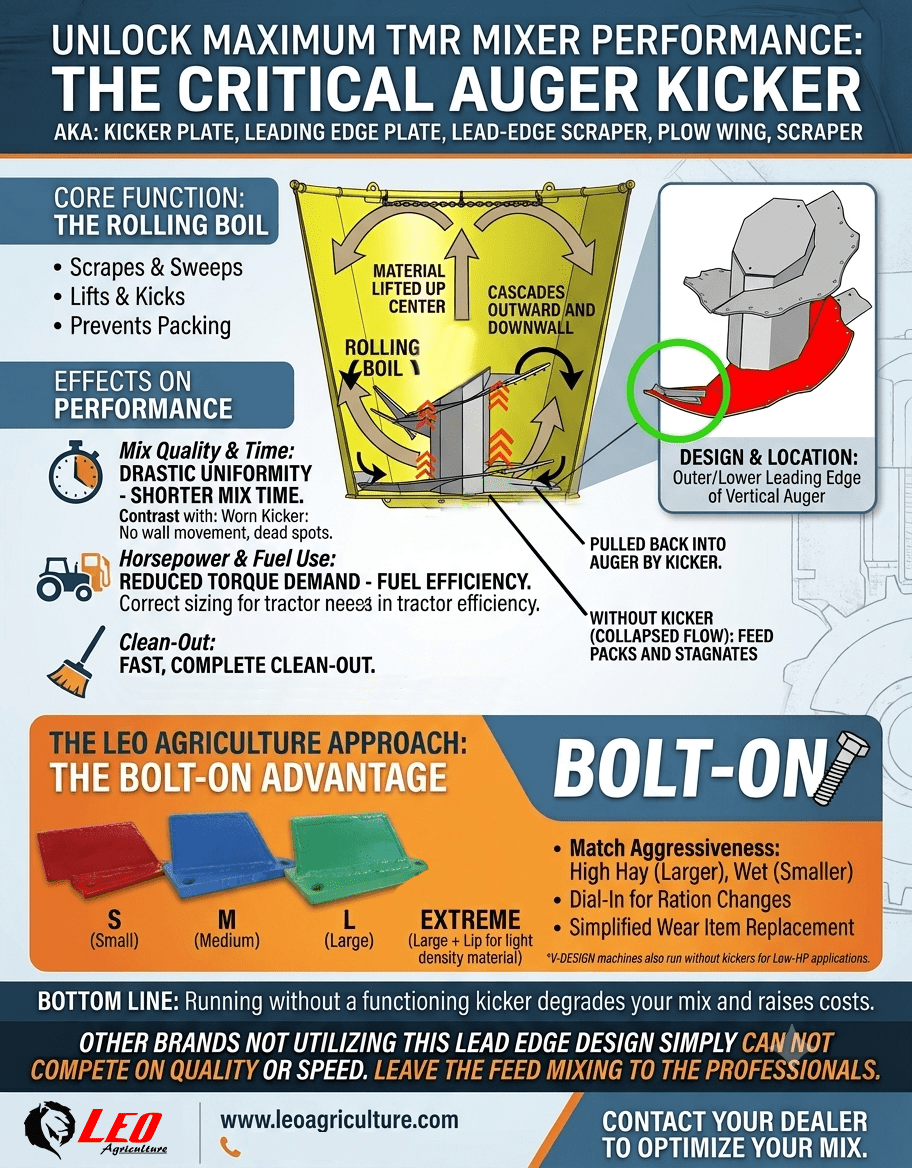

An informational infographic about a TMR mixer component called an auger kicker, showing diagrams of material flow inside a vertical auger mixer and photographs of four bolt-on kicker plates in different sizes and colors. The graphic explains the function, performance effects, and sizing options of the kicker plate, and is branded with the Leo Agriculture logo and website.

Why Clearance Is a Ratio, Not a Dimension

A common assumption when buying a mixer is that auger geometry scales predictably with tub size. Bigger tub, taller auger, proportionally wider flighting. In practice, manufacturers who use one auger design across several capacity classes are cutting corners. The clearance between flighting edge and sidewall shifts as the tub grows, and that gap does not stay inside the working range.

The correct approach sets auger height, diameter, flighting pitch, and sidewall distance as a calculated set of ratios specific to each machine size. Baffle heights, kicker geometry, and the angle of the sidewall itself all feed into the same calculation. Change the tub volume without recalculating those ratios and the auger either hugs the wall too tightly, grinding steel on every rotation, or it drifts too far from it, leaving a dead zone where material stagnates instead of climbing.

LEO Agriculture documents this directly in their engineering materials, quoting calculated ratios for auger diameter, flighting diameter and pitch, triangular baffle heights, and sidewall-to-auger distance as machine-specific rather than shared across the range. That matters because it is where most generic designs fail quietly over time.

What Excessive Sidewall Wear Actually Looks Like

Normal abrasive wear on a vertical mixer sidewall is gradual and fairly uniform. You see a general polish on the lower wall where material passes, heaviest near the auger path. That is expected.

Clearance-driven wear looks different. The pattern is uneven. You get pronounced scalloping or channelling in specific bands, often lower on the wall where the flighting edge runs closest. On a decagonal tub the wear tends to concentrate on the flat wall sections rather than distributing across the full perimeter. On a round tub it wraps more evenly, which makes it easier to miss until the wall is already thin.

The other field sign is bale behaviour. When clearance is correct, a round bale loads, meets the flat wall sections, gets pinched in the corners, and the auger begins cutting it from the outside in. When clearance is off and the tub geometry does not provide that intermittent pinching, the bale spins. A spinning bale is not being processed. It is turning in a circle with the auger, dragging across the sidewall on every rotation. That repeated lateral contact is what accelerates lower sidewall wear well ahead of the knife edges above it.

You can often hear it. A mixer working correctly has a consistent chopping sound as the knives bite. A spinning bale produces a rhythmic thud or slap as it contacts the wall. If your operators have been hearing that and putting it down to frozen material or a tough bale, it is worth checking more carefully. Understanding how auger flow affects bale processing is the starting point for diagnosing where the problem actually sits.

A branded infographic from LEO Agriculture explaining five engineered design features of their auger system used in vertical TMR mixers. The main image shows a yellow-painted auger with labeled callouts pointing to each feature, accompanied by three close-up inset photographs of the blade and knife components.

Stalled Feed Flow and What It Costs

When clearance opens up beyond its working range, the auger stops climbing material cleanly. Instead of feeding a column up the centre and cascading it back down the wall in what operators call a rolling boil, feed packs near the base. The auger pushes through the bottom of the load rather than lifting it.

The horsepower demand goes up immediately. The tractor works harder to spin an auger that is grinding through compacted feed rather than lifting it. Fuel consumption rises. Mix time extends. And the ration coming out is less uniform because the rolling boil that blends the load from top to bottom has collapsed into a grinding motion at the base.

This is where kicker condition matters enormously alongside clearance. A worn kicker removes the scraping and lifting action at the base of the auger, which compounds the effect of any clearance problem. The two issues accelerate each other. If you are troubleshooting long mix times and rising fuel consumption, check both simultaneously rather than assuming one is the sole cause.

It is also worth remembering what happens at the corners. A well-designed tub uses the corner geometry to create intermittent pressure on material as it circulates. Triangular gussets that remove any gap between the sidewall and the auger path, combined with flat wall sections that interrupt rotational momentum, are what keep that pressure consistent. Without them, material bypasses the cutting zone. With a clearance error on top of absent corner geometry, the loss compounds again.

Checking Clearance Before Problems Compound

Late winter is a reasonable time to run a thorough inspection, before spring volumes pick up and before a machine that has been working through cold, frozen material all season is pushed harder. By this point of the year the flighting edges have taken their winter workload. Any clearance shift that started in autumn will be visible now.

Check the lower sidewall for wear pattern. Measure the gap between flighting edge and wall at multiple points around the auger path. Consult your machine documentation for the specified clearance at each capacity. If the figure is not in the manual, that is itself a data point worth noting when you are evaluating whether the machine was engineered to capacity-specific ratios or simply scaled from a common auger.

Inspect the kicker while you are there. A kicker that has lost its profile is no longer sweeping material back into the auger path. It is contributing to the dead zone that accelerates wall contact. Replacing a bolt-on kicker costs far less than replacing lower sidewall steel, and far less still than a full tub liner if the damage has progressed. The precision of the auger’s cutting geometry depends entirely on the supporting components being in working condition around it.

Finally, look at what you are loading. Operators in the Free State running predominantly dry Rhodes grass rations through smaller-capacity machines are putting a different stress on the tub wall than a KwaZulu-Natal feedlot running high-silage rations through a 30 m³ machine. Neither is wrong. But the clearance ratios, kicker size, and knife configuration that suit one are not necessarily right for the other. Getting the auger geometry matched to the actual working conditions of the machine is what keeps the sidewall intact across a full season, rather than discovering the mismatch in steel that needs replacing.

For a broader look at how the full mixer specification fits together for your herd size and ration type, the LEO Agriculture mixer range covers the VT and HD series with capacity-specific engineering documented for each model.
