VT Feed Mixers (Standard Duty Vertical)
LEO VT Series
Vertical Feed Mixers
Dual vertical augers. Precision TMR ration mixing. Seven models from 6 to 21 cubic meters — engineered for the demands of modern dairy and beef operations.
VT Series Vertical Feed Mixers

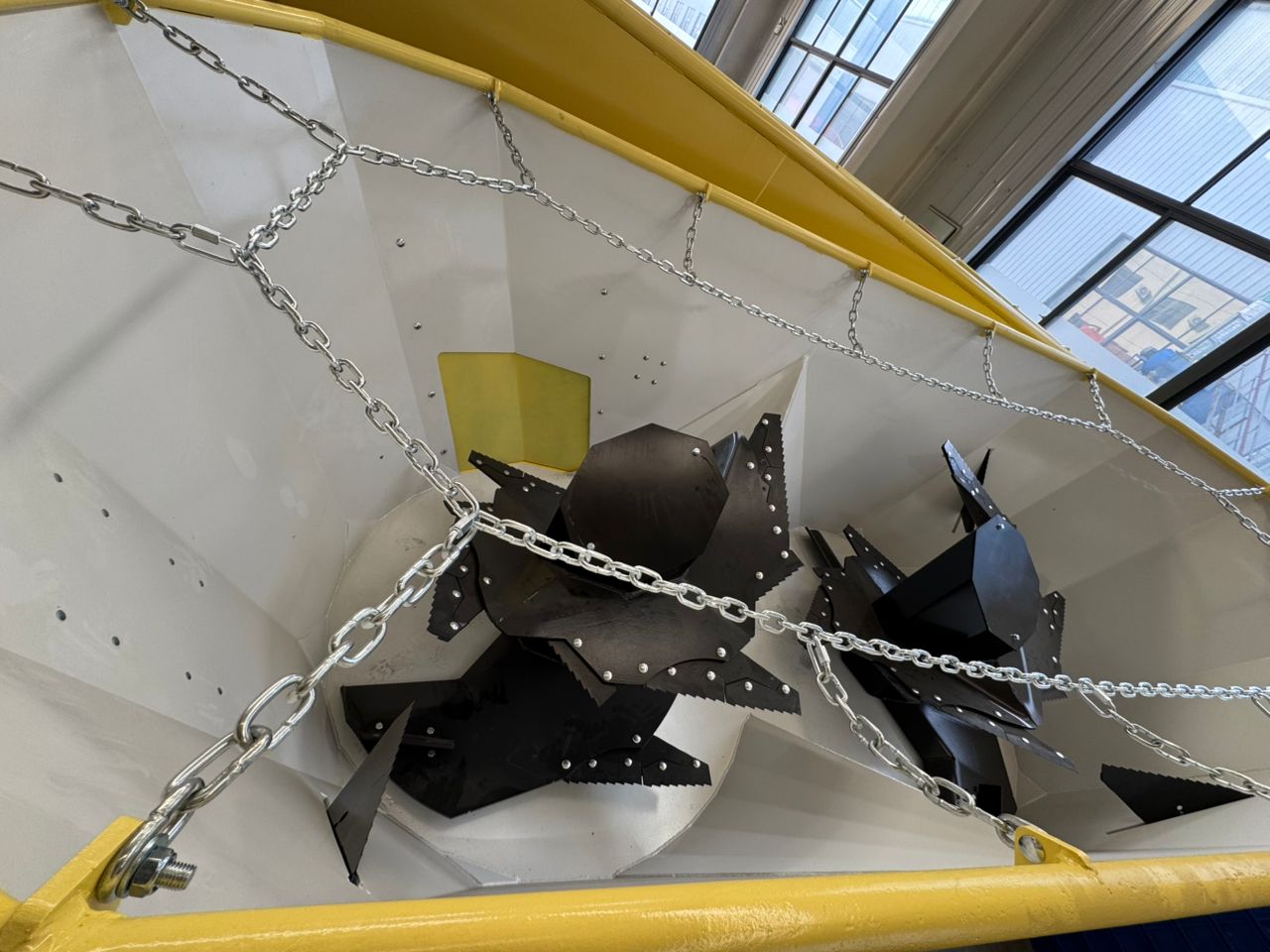

Every VT Series vertical feed mixer features dual counter-rotating augers for superior ration uniformity — from compact 6 m³ units to 21 m³ high-output machines.
Full Technical Specs — Select a Model

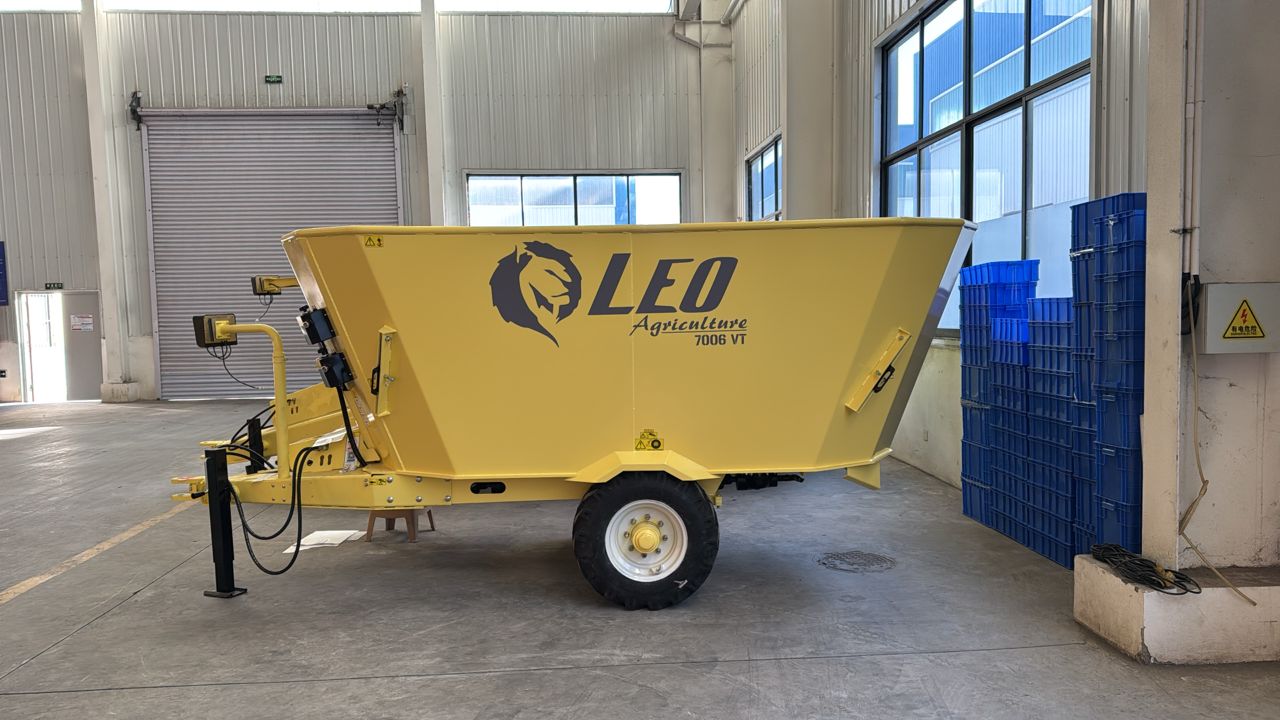

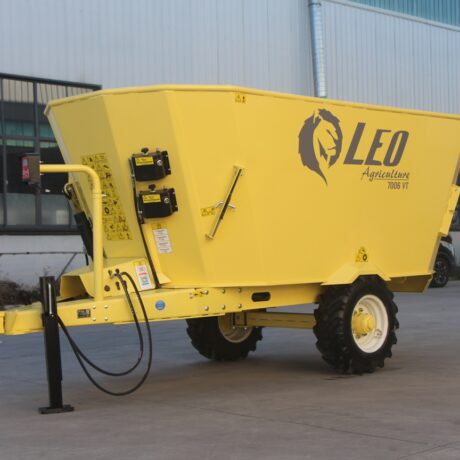

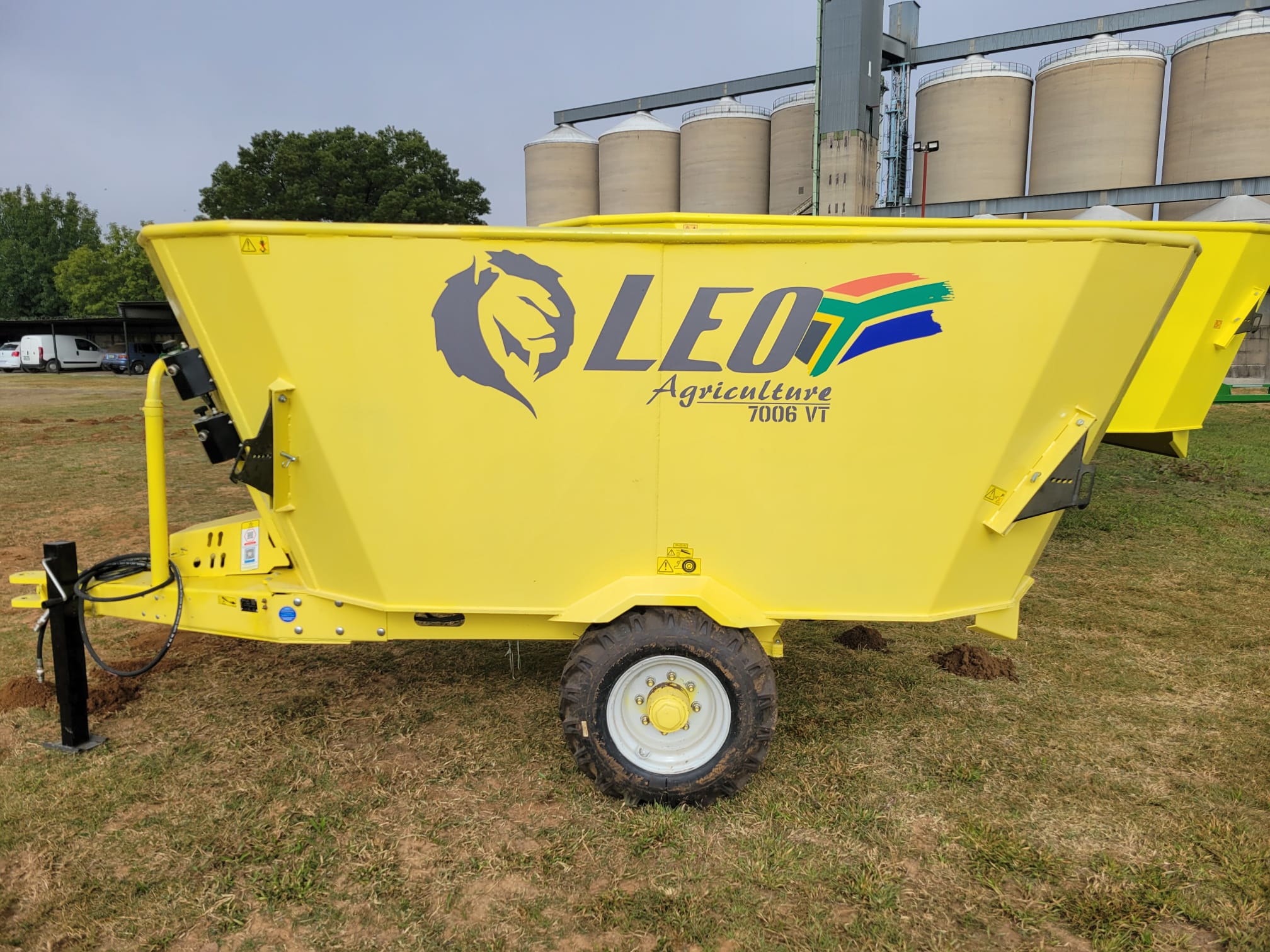

LEO 7006VT — Vertical Feed Mixer Specifications
Ask about this machine| Specification | 7006VT |
|---|---|
| Cubic Meters | 6 m³ |
| Cubic Feet | 212 Cu Ft |
| Max Load Weight (kg) | 1,900 kg |
| Max Load Weight (lbs) | 4,180 lbs |
| Discharge Width | 610mm (24″) Side Door |
| 40′ Container Fitment | ✓ Yes |
| Power Requirement | 50 HP (38 kW) |
| Loading Height | 1,980mm (78″) |
| Machine Width | 1,880mm (74″) |
| Machine Length | 4,659mm (184″) |
| Construction: Floor | 12mm (1/2″) |
| Construction: Walls | 4mm (3/16″) |
| Stainless Steel Liners | Optional |
| Construction: Auger Bottom | 12mm (1/2″) |
| Construction: Auger Top | 12mm (1/2″) |
| Input RPM | 540 RPM |
| Loadcells | 3 (2.125″) |
| Tires | 2 |
| Auger Knives | Small: 8 / Large: 10 |
| Side Wall Knives | 2 |
| Road Lights | Optional |
Key Features & Benefits
- Dual vertical augers (VT) — twin counter-rotating augers deliver superior TMR ration uniformity versus single-auger mixers
- 40′ container fitment — ships worldwide in a standard 40-foot container for simplified global delivery
- 3 precision loadcells (2.125″) — accurate real-time ingredient weighing for tight ration management
- 18 auger knives (8 small / 10 large) — aggressive cutting action handles whole bales, coarse roughage, and wet feeds
- Optional stainless steel liners — ideal for high-moisture silage and corrosive TMR rations
- 50 HP @ 540 RPM — pairs with a wide range of mid-size tractors without excessive fuel demand
Best For
Small-to-mid dairies (50–150 cows), beef backgrounding lots, and goat or sheep operations stepping up to a full-size vertical feed mixer for the first time.
LEO 7008VT — Vertical Feed Mixer Specifications
Ask about this machine| Specification | 7008VT |
|---|---|
| Cubic Meters | 8 m³ |
| Cubic Feet | 280 Cu Ft |
| Max Load Weight (kg) | 2,550 kg |
| Max Load Weight (lbs) | 5,650 lbs |
| Discharge Width | 610mm (24″) Side Door |
| 40′ Container Fitment | ✓ Yes |
| Power Requirement | 56 HP (42 kW) |
| Loading Height | 2,310mm (91″) |
| Machine Width | 1,930mm (76″) |
| Machine Length | 4,775mm (188″) |
| Construction: Floor | 12mm (1/2″) |
| Construction: Walls | 4mm (1/4″) |
| Stainless Steel Liners | Optional |
| Construction: Auger Bottom | 12mm (1/2″) |
| Construction: Auger Top | 12mm (1/2″) |
| Input RPM | 540 RPM |
| Loadcells | 3 (2.125″) |
| Tires | 2 |
| Auger Knives | Small: 8 / Large: 12 |
| Side Wall Knives | 2 |
| Road Lights | Optional |
Key Features & Benefits
- 33% more capacity than the 7006VT — handle larger feed rations without stepping up in tractor size
- 20 auger knives (8 small / 12 large) — more large knives for better roughage processing efficiency
- 5,650 lb max load capacity — built for consistent twice-daily feeding cycles on growing operations
- 610mm (24″) side discharge door — efficient feed distribution along feed alleys
Best For
Growing dairy operations (100–200 cows), mixed beef and dairy, and producers who want a compact vertical feed mixer footprint with meaningful capacity gains over entry-level models.
LEO 7010VT — Vertical Feed Mixer Specifications
Ask about this machine| Specification | 7010VT |
|---|---|
| Cubic Meters | 10 m³ |
| Cubic Feet | 353 Cu Ft |
| Max Load Weight (kg) | 3,150 kg |
| Max Load Weight (lbs) | 7,000 lbs |
| Discharge Width | 760mm (30″) Side Door |
| 40′ Container Fitment | ✓ Yes |
| Power Requirement | 71 HP (53 kW) |
| Loading Height | 2,280mm (90″) |
| Machine Width | 2,270mm (90″) |
| Machine Length | 5,740mm (226″) |
| Construction: Floor | 12mm (1/2″) |
| Construction: Walls | 6mm (1/4″) |
| Stainless Steel Liners | Optional |
| Construction: Auger Bottom | 12mm (1/2″) |
| Construction: Auger Top | 12mm (1/2″) |
| Input RPM | 540 RPM |
| Loadcells | 3 (2.50″) |
| Tires | 2 |
| Auger Knives | Small: 12 / Large: 10 |
| Side Wall Knives | 2 |
| Road Lights | Optional |
Key Features & Benefits
- Upgraded 6mm (1/4″) walls — heavier construction handles higher-density rations and daily wear on busy operations
- 760mm (30″) side discharge door — wider opening for faster unloading and reduced cycle times
- 22 auger knives (12 small / 10 large) — increased small knife count for more precise particle size reduction
- 2.50″ loadcell upgrade — higher-rated precision weigh cells to match the increased load capacity
Best For
Mid-size dairies (150–300 cows), commercial beef feedlots, and operations that feed multiple groups per day and need a dependable vertical feed mixer with heavy-wall construction.
LEO 7013VT — Vertical Feed Mixer Specifications
Ask about this machine| Specification | 7013VT |
|---|---|
| Cubic Meters | 13 m³ |
| Cubic Feet | 460 Cu Ft |
| Max Load Weight (kg) | 4,700 kg |
| Max Load Weight (lbs) | 10,500 lbs |
| Discharge Width | 760mm (30″) Side Door |
| 40′ Container Fitment | ✓ Yes |
| Power Requirement | 92 HP (69 kW) |
| Loading Height | 2,460mm (97″) |
| Machine Width | 2,575mm (102″) |
| Machine Length | 6,600mm (260″) |
| Construction: Floor | 12mm (1/2″) |
| Construction: Walls | 6mm (1/4″) |
| Stainless Steel Liners | Optional |
| Construction: Auger Bottom | 16mm (5/8″) |
| Construction: Auger Top | 12mm (1/2″) |
| Input RPM | 1,000 RPM |
| Loadcells | 3 (3.125″) |
| Tires | 2 |
| Auger Knives | Small: 12 / Large: 10 |
| Side Wall Knives | 3 |
| Road Lights | Optional |
Key Features & Benefits
- 16mm (5/8″) auger bottom — heavy-duty lower auger plate built for high-load, high-cycle commercial feeding programs
- 1,000 RPM input — higher PTO speed for increased auger torque and faster processing of large round bales
- 3.125″ commercial loadcells — highest-rated precision weighing for maximum ration accuracy at 10,500 lb loads
- 3 side wall knives — added cutting action along the bowl walls to prevent material bridging and packing
Best For
Large commercial dairies (300–600 cows), custom feeding operations, and any producer who needs a high-output vertical feed mixer with commercial-grade drivetrain and construction.
LEO 7015VT — Vertical Feed Mixer Specifications
Ask about this machine| Specification | 7015VT |
|---|---|
| Cubic Meters | 15 m³ |
| Cubic Feet | 530 Cu Ft |
| Max Load Weight (kg) | 5,500 kg |
| Max Load Weight (lbs) | 12,200 lbs |
| Discharge Width | 760mm (30″) Side Door |
| 40′ Container Fitment | ✓ Yes |
| Power Requirement | 107 HP (78 kW) |
| Loading Height | 2,565mm (101″) |
| Machine Width | 2,575mm (102″) |
| Machine Length | 6,680mm (263″) |
| Construction: Floor | 12mm (1/2″) |
| Construction: Walls | 6mm (1/4″) |
| Stainless Steel Liners | Optional |
| Construction: Auger Bottom | 16mm (5/8″) |
| Construction: Auger Top | 12mm (1/2″) |
| Input RPM | 1,000 RPM |
| Loadcells | 3 (3.125″) |
| Tires | 2 |
| Auger Knives | Small: 12 / Large: 12 |
| Side Wall Knives | 3 |
| Road Lights | Optional |
Key Features & Benefits
- 24 auger knives (12 small / 12 large) — balanced knife configuration for uniform cutting across the full load
- 12,200 lb max load — serves large herds with fewer mixing cycles per day, reducing labor and fuel costs
- Heavy commercial construction — 16mm auger bottom and 6mm walls withstand the demands of large-herd daily feeding
Best For
Large dairies (400–700 cows), commercial feedlots, and operations with high daily feed volume requirements who need a rugged, reliable vertical feed mixer that minimizes downtime.

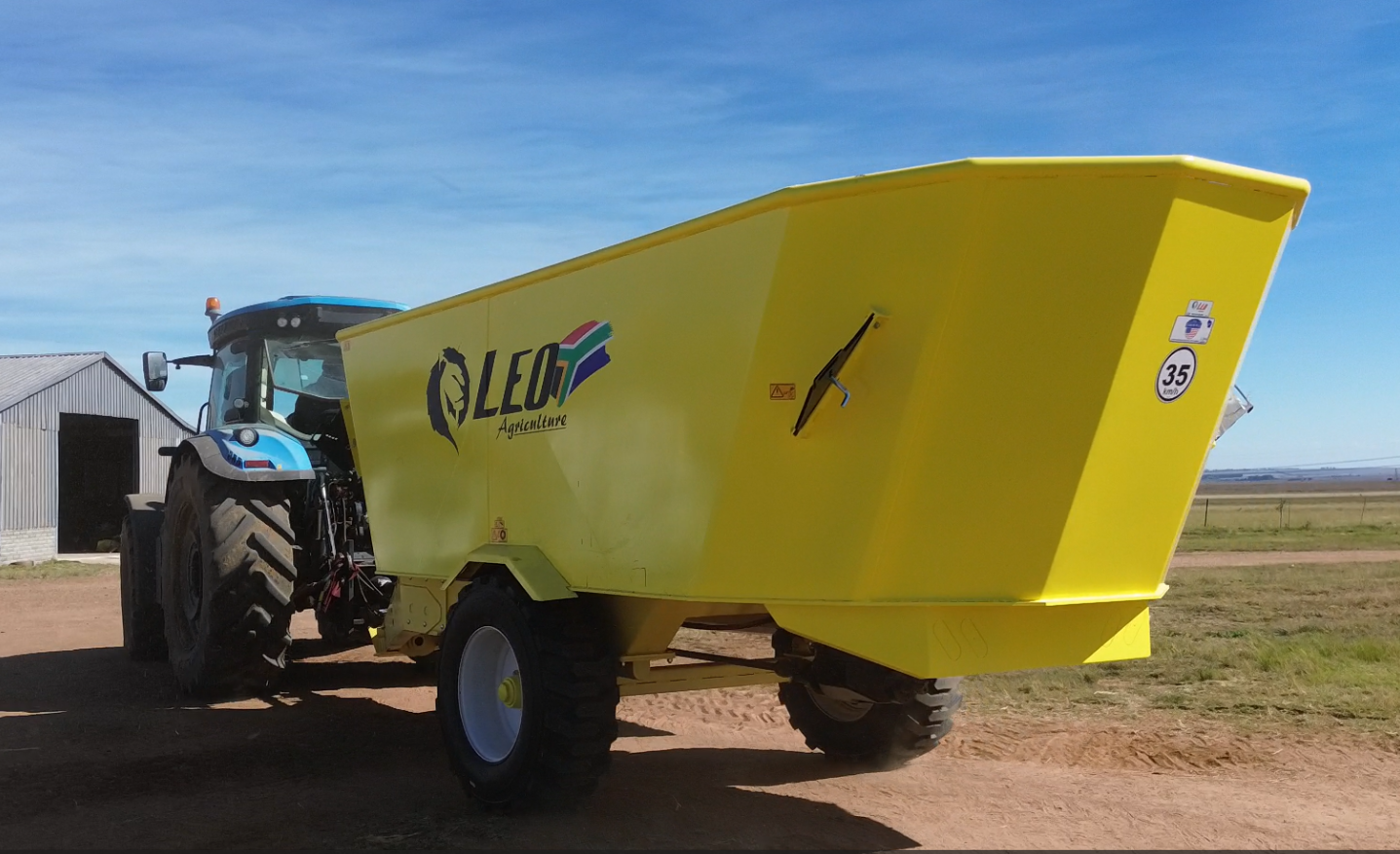

LEO 7018VT — Vertical Feed Mixer Specifications
Ask about this machine| Specification | 7018VT |
|---|---|
| Cubic Meters | 18 m³ |
| Cubic Feet | 636 Cu Ft |
| Max Load Weight (kg) | 6,600 kg |
| Max Load Weight (lbs) | 14,600 lbs |
| Discharge Width | 760mm (30″) Side Door |
| 40′ Container Fitment | ✓ Yes |
| Power Requirement | 126 HP (94 kW) |
| Loading Height | 2,840mm (112″) |
| Machine Width | 2,575mm (102″) |
| Machine Length | 6,960mm (274″) |
| Construction: Floor | 12mm (1/2″) |
| Construction: Walls | 6mm (1/4″) |
| Stainless Steel Liners | Optional |
| Construction: Auger Bottom | 16mm (5/8″) |
| Construction: Auger Top | 12mm (1/2″) |
| Input RPM | 1,000 RPM |
| Loadcells | 4 (3.125″) |
| Tires | 2 |
| Auger Knives | Small: 12 / Large: 14 |
| Side Wall Knives | 3 |
| Road Lights | Optional |
Key Features & Benefits
- 26 auger knives (12 small / 14 large) — maximum knife count for aggressive whole-bale processing and dense TMR rations
- 14,600 lb max load — one of the highest capacities in the VT lineup for large-scale multi-group feeding
- 126 HP @ 1,000 RPM — high-torque power delivery for consistent performance even in maximum-load conditions
- Full-suite stainless liner option — protects the mixing bowl against corrosive acids in high-moisture silage-based rations
Best For
Large commercial dairies (500–900 cows), custom feedlot operators, and operations running multiple ration groups daily who need the highest reliability in a vertical feed mixer.

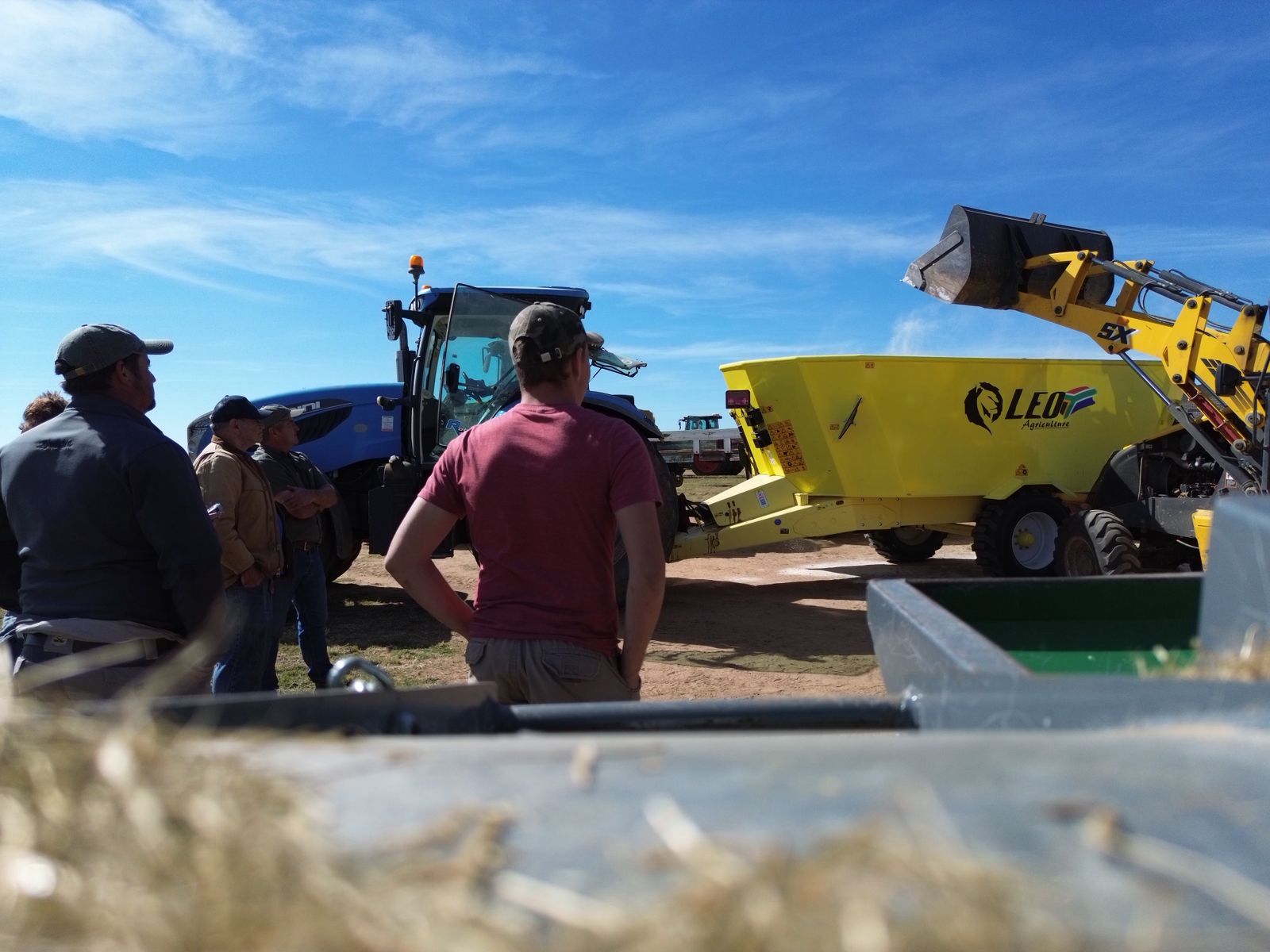

LEO 7021VT — Vertical Feed Mixer Specifications
Ask about this machine| Specification | 7021VT |
|---|---|
| Cubic Meters | 21 m³ |
| Cubic Feet | 740 Cu Ft |
| Max Load Weight (kg) | 7,700 kg |
| Max Load Weight (lbs) | 17,000 lbs |
| Discharge Width | 760mm (30″) Side Door |
| 40′ Container Fitment | ✓ Yes |
| Power Requirement | 145 HP (108 kW) |
| Loading Height | 3,098mm (122″) |
| Machine Width | 2,490mm (98″) |
| Machine Length | 7,060mm (278″) |
| Construction: Floor | 12mm (1/2″) |
| Construction: Walls | 6mm (1/4″) |
| Stainless Steel Liners | Optional |
| Construction: Auger Bottom | 16mm (5/8″) |
| Construction: Auger Top | 12mm (1/2″) |
| Input RPM | 1,000 RPM |
| Loadcells | 4 (3.125″) |
| Tires | 4 |
| Auger Knives | 12 |
| Side Wall Knives | 3 |
| Road Lights | Optional |
Key Features & Benefits
- Flagship 21 m³ capacity — the largest LEO vertical feed mixer, built for the highest-output commercial operations
- 4 loadcells (3.125″) — four-point weighing system for the highest-precision ration management at 17,000 lb loads
- 4-tire running gear — tandem axle configuration distributes the weight of maximum loads for stable field and road transport
- 145 HP @ 1,000 RPM — maximum power delivery for the most demanding roughage-cutting and high-density TMR applications
Best For
Large commercial dairies (700+ cows), custom feeding contractors, and mega-operations requiring the maximum load capacity, precision weighing, and heavy-duty construction of the LEO VT flagship.

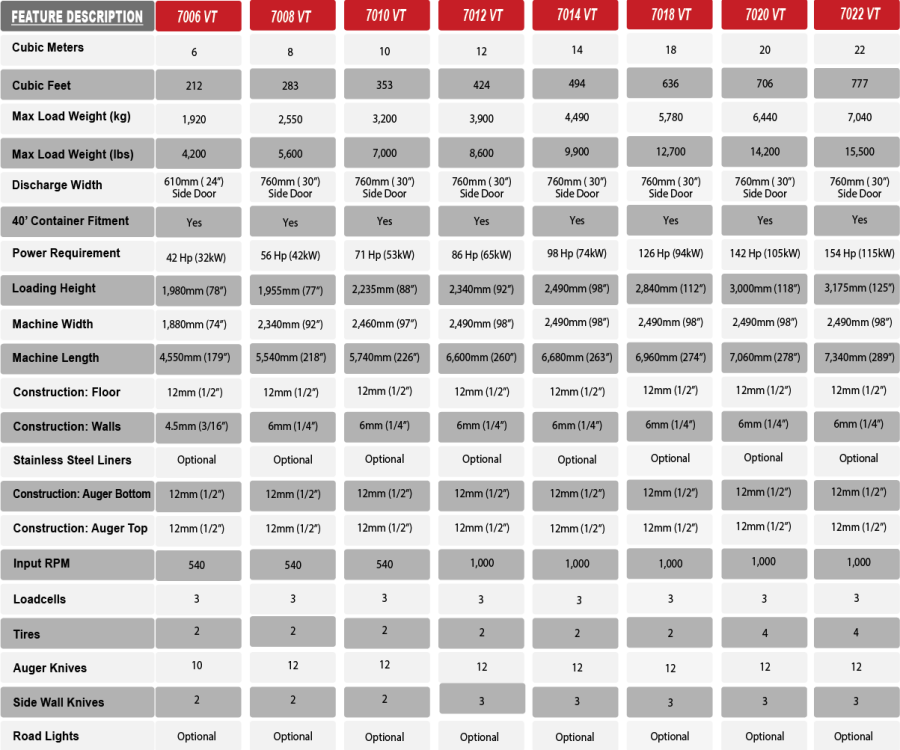

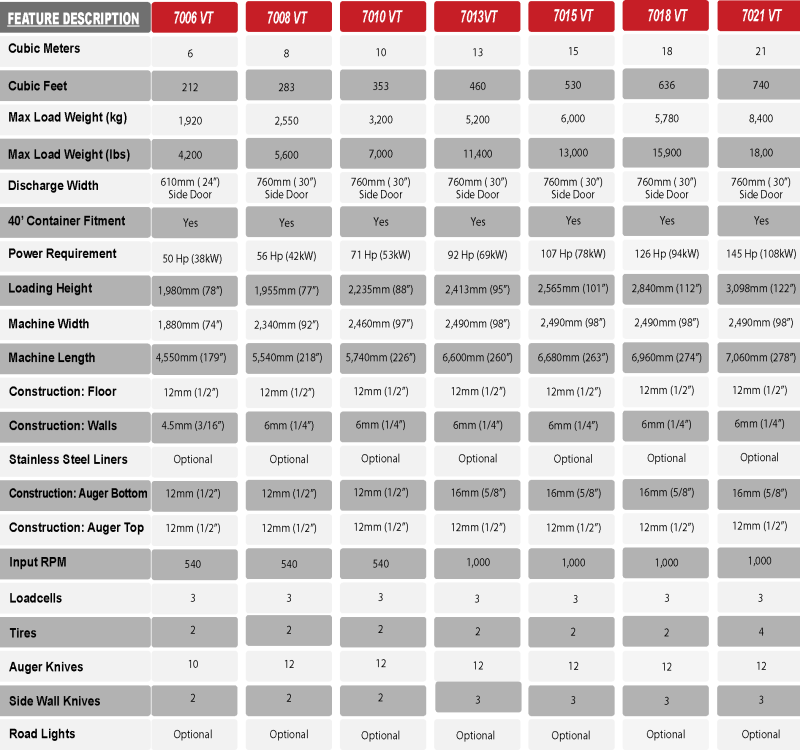

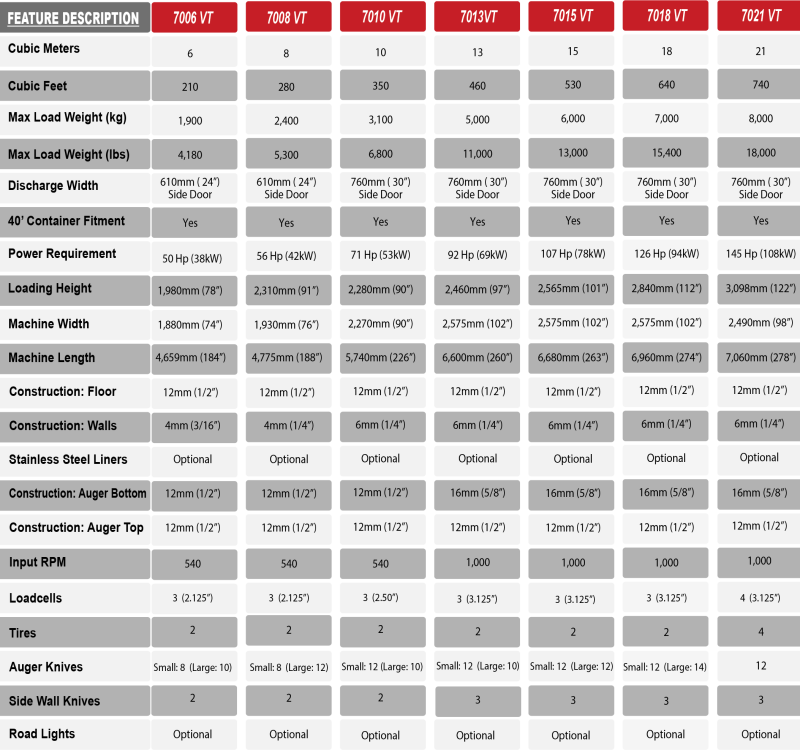

Compare All VT Series Models
Side-by-side specs for every LEO vertical feed mixer — scroll right to see all models
| Specification | ★ Popular 7006VT |
Standard 7008VT |
★ Popular 7010VT |
★ Popular 7013VT |
Standard 7015VT |
★ Popular 7018VT |
Flagship 7021VT |
|---|---|---|---|---|---|---|---|
| Cubic Meters | 6 | 8 | 10 | 13 | 15 | 18 | 21 |
| Cubic Feet | 212 | 280 | 353 | 460 | 530 | 636 | 740 |
| Max Load (kg) | 1,900 | 2,550 | 3,150 | 4,700 | 5,500 | 6,600 | 7,700 |
| Max Load (lbs) | 4,180 | 5,650 | 7,000 | 10,500 | 12,200 | 14,600 | 17,000 |
| Power Requirement | 50 HP | 56 HP | 71 HP | 92 HP | 107 HP | 126 HP | 145 HP |
| Input RPM | 540 | 540 | 540 | 1,000 | 1,000 | 1,000 | 1,000 |
| Machine Length | 4,659mm (184″) | 4,775mm (188″) | 5,740mm (226″) | 6,600mm (260″) | 6,680mm (263″) | 6,960mm (274″) | 7,060mm (278″) |
| Discharge Width | 610mm (24″) | 610mm (24″) | 760mm (30″) | 760mm (30″) | 760mm (30″) | 760mm (30″) | 760mm (30″) |
| Wall Thickness | 4mm (3/16″) | 4mm (1/4″) | 6mm (1/4″) | 6mm (1/4″) | 6mm (1/4″) | 6mm (1/4″) | 6mm (1/4″) |
| Auger Bottom | 12mm (1/2″) | 12mm (1/2″) | 12mm (1/2″) | 16mm (5/8″) | 16mm (5/8″) | 16mm (5/8″) | 16mm (5/8″) |
| Loadcells | 3 (2.125″) | 3 (2.125″) | 3 (2.50″) | 3 (3.125″) | 3 (3.125″) | 4 (3.125″) | 4 (3.125″) |
| Tires | 2 | 2 | 2 | 2 | 2 | 2 | 4 |
| Auger Knives | S:8 / L:10 | S:8 / L:12 | S:12 / L:10 | S:12 / L:10 | S:12 / L:12 | S:12 / L:14 | 12 |
| Side Wall Knives | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| 40′ Container Fit | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Find Your VT Series Vertical Feed Mixer
From 6 to 21 cubic meters, every LEO VT Series vertical feed mixer is built with dual vertical augers, precision loadcells, and heavy-duty steel construction — backed by LEO's full dealer and support network. Contact us to find the right model for your operation.
Compare models
Compare the VT Series
Seven twin-auger vertical mixers, from 6 to 21 cubic meters. The table is the full lineup. The comparer lets you put any three models side by side with the full spec sheet — no prices.
| Model | Capacity | Max load | Power | Input RPM |
|---|---|---|---|---|
| LEO 7006VT Popular | 6 m³ / 212 cu ft | 4,180 lbs (1,900 kg) | 50 HP (38 kW) | 540 RPM |
| LEO 7008VT | 8 m³ / 280 cu ft | 5,650 lbs (2,550 kg) | 56 HP (42 kW) | 540 RPM |
| LEO 7010VT Popular | 10 m³ / 353 cu ft | 7,000 lbs (3,150 kg) | 71 HP (53 kW) | 540 RPM |
| LEO 7013VT Popular | 13 m³ / 460 cu ft | 10,500 lbs (4,700 kg) | 92 HP (69 kW) | 1,000 RPM |
| LEO 7015VT | 15 m³ / 530 cu ft | 12,200 lbs (5,500 kg) | 107 HP (78 kW) | 1,000 RPM |
| LEO 7018VT Popular | 18 m³ / 636 cu ft | 14,600 lbs (6,600 kg) | 126 HP (94 kW) | 1,000 RPM |
| LEO 7021VT | 21 m³ / 740 cu ft | 17,000 lbs (7,700 kg) | 145 HP (108 kW) | 1,000 RPM |
The comparer shows up to three models at a time. This link opens with the 7010VT, 7013VT, and 7018VT selected — three of the most popular sizes. You can swap any of them.
VT Series or HD Series?
Both are vertical TMR mixers. The HD Series is the heavier commercial line, with a thicker floor, stainless liners as standard, and a larger capacity range.
| VT Series | HD Series | |
|---|---|---|
| Capacity | 6–21 m³ | 14–45 m³ |
| Models | 7, from 7006VT to 7021VT | 7, from 7014HD to 7045HD |
| Floor | 12 mm (1/2″) | 20 mm (3/4″); 25 mm (1″) on the 7040HD and 7045HD |
| Stainless liners | Optional | Standard |
| Hay retention chain | — | Standard |
| Load cells | 3-point (4-point on the 7018VT and 7021VT) | 4-point (6-point on the 7025HD, 7028HD, 7040HD and 7045HD) |
