Commercial-grade vertical feed mixers built for the most demanding livestock operations. 14 to 45 cubic meters of HD mixing power — with custom commercial duty machines available on order.
20mm Floor
3/4" reinforced steel floor
6mm / 10mm Walls
6mm steel walls (10mm on the 7040HD and 7045HD) plus stainless liners
SS Liners Standard
Stainless steel on all models
4- or 6-Point Scale
Precision loadcell system standard
Seven heavy duty feed mixer models from 14 to 45 cubic meters — all built with 20mm floors and 6mm walls (25mm floors and 10mm walls on the 7040HD and 7045HD), stainless steel liners, and a 4-point scale system (6-point on the 7025HD and larger) as standard. Custom commercial duty machines available on special order.
⭐ Most Popular
HD
Truck Mount Avail.
Heavy Duty Vertical Feed Mixer · Front Discharge Flat 630mm (25") — Standard
Entry point to full HD construction. Front discharge standard. Proven reliability for demanding mid-to-large dairy and beef herds.
Get a Quote
Truck Mount Avail.
HD
Heavy Duty Vertical Feed Mixer · Front Discharge Flat 630mm (25") — Standard
The ideal bridge between mid-size and large-scale operations. Front discharge standard. Full HD steel construction throughout.
Get a Quote
Truck Mount Avail.
HD
Heavy Duty Vertical Feed Mixer · Front Discharge Flat 630mm (25") — Standard
Front discharge and trailer mount standard. Optional truck-mounted commercial configuration available — contact LEO for details.
Get a Quote
HD
Heavy Duty Vertical Feed Mixer · Front Discharge Flat 630mm (25") — Standard
Front discharge standard, built for large freestall barns. Commercial-scale capacity with the full HD build standard.
Get a Quote
⭐ Most Popular
HD
Heavy Duty Vertical Feed Mixer · Front Discharge Flat 630mm (25") — Standard
The industry benchmark for large commercial and feedlot operations. Front discharge standard — purpose-built for front-loading alleys and high-throughput feeding programs.
Get a Quote
HD
Heavy Duty Vertical Feed Mixer · Two Side Doors
Maximum-throughput capacity for the largest feedlot and commercial feed center operations.
Get a Quote
⭐ Most Popular
HD
Heavy Duty Vertical Feed Mixer · Two Side Doors — Flagship
LEO's largest standard HD model. Custom commercial duty upgrades available — truck mount, extended capacity, and more.
Get a QuoteAll LEO HD Series heavy duty feed mixers feature our advanced modular blade system — individually replaceable cutting blades designed to minimize downtime and reduce maintenance costs. Swap a single worn blade in minutes without replacing the entire assembly. Built for operations that can't afford unnecessary downtime.
Ask about the Modular Blade System

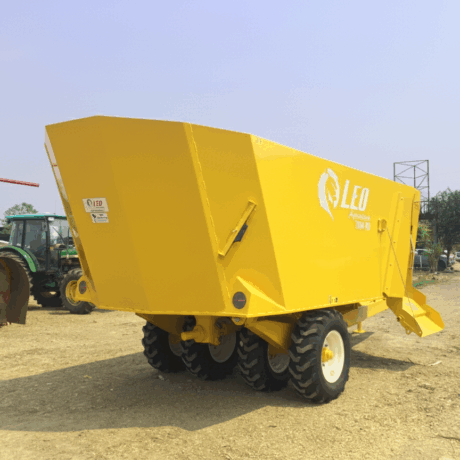

Heavy Duty Feed Mixer · Front Discharge Flat 630mm (25") — Standard
| Capacity | 14 m³ / 494 cu ft |
| Max Load Weight (kg) | 5,670 kg |
| Max Load Weight (lbs) | 12,500 lbs |
| Power Required | 99 HP (73 kW) |
| Input RPM | 1,000 RPM |
| Loading Height | 2,460mm (97") |
| Machine Width | 2,430mm (96") |
| Machine Length | 6,690mm (264") |
| Discharge Type | Front Discharge Flat 630mm (25") |
| Discharge Width | 1040mm (41") Front Door |
| Floor Thickness | 20mm (3/4") |
| Total Wall Thickness | 9mm (≈3/8") — 6mm + 3mm SS |
| Construction Walls | 6mm (1/4") mild steel |
| Auger Thickness | Total 22 mm (7/8") with Edge Liner / Base 16 mm (5/8") |
| Edge Wear Liners | Standard |
| SS Liners (3mm / 6ga) | Standard |
| Hay Retention Chain | Standard |
| Loadcells | 4-Point Scale System |
| Augers | 2 (Twin Auger) |
| Mixing Time | 5–8 Minutes |
Heavy Duty Feed Mixer · Front Discharge Flat 630mm (25") — Standard
| Capacity | 16 m³ / 565 cu ft |
| Max Load Weight (kg) | 6,350 kg |
| Max Load Weight (lbs) | 14,000 lbs |
| Power Required | 115 HP (86 kW) |
| Input RPM | 1,000 RPM |
| Loading Height | 2,650mm (104") |
| Machine Width | 2,430mm (96") |
| Machine Length | 6,690mm (264") |
| Discharge Type | Front Discharge Flat 630mm (25") |
| Discharge Width | 1040mm (41") Front Door |
| Floor Thickness | 20mm (3/4") |
| Total Wall Thickness | 9mm (≈3/8") — 6mm + 3mm SS |
| Construction Walls | 6mm (1/4") mild steel |
| Auger Thickness | Total 22 mm (7/8") with Edge Liner / Base 16 mm (5/8") |
| Edge Wear Liners | Standard |
| SS Liners (3mm / 6ga) | Standard |
| Hay Retention Chain | Standard |
| Loadcells | 4-Point Scale System |
| Augers | 2 (Twin Auger) |
The 7016HD delivers 16 m³ of capacity in full HD construction — the ideal step-up for growing operations that need more capacity while retaining the proven heavy duty build quality. Front discharge is standard.
Request a QuoteHeavy Duty Feed Mixer · Front Discharge Flat 630mm (25") — Standard
| Capacity | 18 m³ / 636 cu ft |
| Max Load Weight (kg) | 7,260 kg |
| Max Load Weight (lbs) | 16,000 lbs |
| Power Required | 127 HP (94 kW) |
| Input RPM | 1,000 RPM |
| Loading Height | 2,870mm (113") |
| Machine Width | 2,430mm (96") |
| Machine Length | 6,830mm (269") |
| Discharge Type | Front Discharge Flat 630mm (25") |
| Discharge Width | 1040mm (41") Front Door |
| Floor Thickness | 20mm (3/4") |
| Total Wall Thickness | 9mm (≈3/8") — 6mm + 3mm SS |
| Construction Walls | 6mm (1/4") mild steel |
| Auger Thickness | Total 22 mm (7/8") with Edge Liner / Base 16 mm (5/8") |
| Edge Wear Liners | Standard |
| SS Liners (3mm / 6ga) | Standard |
| Hay Retention Chain | Standard |
| Loadcells | 4-Point Scale System |
| Augers | 2 (Twin Auger) |
ℹ️ Truck Mount Option
The image shows the commercial truck-mounted configuration. Front discharge and trailer mount are standard. A truck-mount version is available for commercial feed operations — contact LEO Agriculture for custom pricing and specifications.
Request a QuoteHeavy Duty Feed Mixer · Front Discharge Flat 630mm (25") — Standard
| Capacity | 25 m³ / 883 cu ft |
| Max Load Weight (kg) | 10,200 kg |
| Max Load Weight (lbs) | 22,500 lbs |
| Power Required | 177 HP (130 kW) |
| Input RPM | 1,000 RPM |
| Loading Height | 2,790mm (110") |
| Machine Width | 2,430mm (96") |
| Machine Length | 8,790mm (346") |
| Discharge Type | Front Discharge Flat 630mm (25") |
| Discharge Width | 1040mm (41") Front Door |
| Floor Thickness | 20mm (3/4") |
| Total Wall Thickness | 9mm (≈3/8") — 6mm + 3mm SS |
| Construction Walls | 6mm (1/4") mild steel |
| Auger Thickness | Total 22 mm (7/8") with Edge Liner / Base 16 mm (5/8") |
| Edge Wear Liners | Standard |
| SS Liners (3mm / 6ga) | Standard |
| Hay Retention Chain | Standard |
| Loadcells | 6-Point Scale System |
| Augers | 3 |
The 7025HD delivers 25 m³ with front discharge as standard — purpose-built for large freestall barns and operations where frontal unloading is required. Full HD construction with stainless steel liners and 6-point scale throughout.
Request a QuoteHeavy Duty Feed Mixer · Front Discharge Flat 630mm (25") — Standard
| Capacity | 28 m³ / 990 cu ft |
| Max Load Weight (kg) | 11,340 kg |
| Max Load Weight (lbs) | 25,000 lbs |
| Power Required | 198 HP (145 kW) |
| Input RPM | 1,000 RPM |
| Loading Height | 2,950mm (116") |
| Machine Width | 2,430mm (96") |
| Machine Length | 8,790mm (346") |
| Discharge Type | Front Discharge Flat 630mm (25") |
| Discharge Width | 1040mm (41") Front Door |
| Floor Thickness | 20mm (3/4") |
| Total Wall Thickness | 9mm (≈3/8") — 6mm + 3mm SS |
| Construction Walls | 6mm (1/4") mild steel |
| Auger Thickness | Total 22 mm (7/8") with Edge Liner / Base 16 mm (5/8") |
| Edge Wear Liners | Standard |
| SS Liners (3mm / 6ga) | Standard |
| Hay Retention Chain | Standard |
| Loadcells | 6-Point Scale System |
| Augers | 3 |
Heavy Duty Feed Mixer · Two Side Doors
| Capacity | 40 m³ / 1,400 cu ft |
| Max Load Weight (kg) | 16,000 kg |
| Max Load Weight (lbs) | 35,300 lbs |
| Power Required | 280 HP (205 kW) |
| Input RPM | 1,000 RPM |
| Loading Height | 2,850mm (112") |
| Machine Width | 2,870mm (113") |
| Machine Length | 10,795mm (425") |
| Discharge Type | Two Side Doors |
| Discharge Width | 760mm (30") Dual Side Door |
| Floor Thickness | 25mm (1") |
| Total Wall Thickness | 13mm (≈1/2") — 10mm + 3mm SS |
| Construction Walls | 10mm (1/4") mild steel |
| Auger Thickness | Total 26 mm (1") with Edge Liner / Base 20 mm (3/4") |
| Edge Wear Liners | Standard |
| 24" SS Liners (3mm / 6ga) | Standard |
| Hay Retention Chain | Standard |
| Loadcells | 6-Point Scale System |
| Augers | 3 |
The 7040HD delivers maximum-throughput capacity at 40 m³ and 280 HP. Two side doors and full HD construction make it ideal for the highest-volume commercial cattle and dairy operations.
Request a QuoteHeavy Duty Feed Mixer — Flagship · Two Side Doors
| Capacity | 45 m³ / 1,600 cu ft |
| Max Load Weight (kg) | 18,000 kg |
| Max Load Weight (lbs) | 39,700 lbs |
| Power Required | 321 HP (236 kW) |
| Input RPM | 1,000 RPM |
| Loading Height | 2,950mm (117") |
| Machine Width | 2,870mm (113") |
| Machine Length | 10,825mm (427") |
| Discharge Type | Two Side Doors |
| Discharge Width | 760mm (30") Dual Side Door |
| Floor Thickness | 25mm (1") |
| Total Wall Thickness | 13mm (≈1/2") — 10mm + 3mm SS |
| Construction Walls | 10mm (1/4") mild steel |
| Auger Thickness | Total 26 mm (1") with Edge Liner / Base 20 mm (3/4") |
| Edge Wear Liners | Standard |
| 24" SS Liners (3mm / 6ga) | Standard |
| Hay Retention Chain | Standard |
| Loadcells | 6-Point Scale System |
| Augers | 3 |
| Custom Commercial | Available on Order |
| Specification | 7014HD ⭐ | 7016HD | 7018HD | 7025HD | 7028HD ⭐ | 7040HD | 7045HD ⭐ |
|---|---|---|---|---|---|---|---|
| Capacity (m³) | 14 | 16 | 18 | 25 | 28 | 40 | 45 |
| Capacity (cu ft) | 494 | 565 | 636 | 883 | 990 | 1,400 | 1,600 |
| Max Load (kg) | 5,670 | 6,350 | 7,260 | 10,200 | 11,340 | 16,000 | 18,000 |
| Max Load (lbs) | 12,500 | 14,000 | 16,000 | 22,500 | 25,000 | 35,300 | 39,700 |
| Power (HP) | 99 | 115 | 127 | 177 | 198 | 280 | 321 |
| Power (kW) | 73 | 86 | 94 | 130 | 145 | 205 | 236 |
| Loading Ht. (mm) | 2,460 | 2,650 | 2,870 | 2,790 | 2,950 | 2,850 | 2,950 |
| Loading Ht. (in) | 97" | 104" | 113" | 110" | 116" | 112" | 117" |
| Discharge Type | Front Discharge Flat 630mm (25") | Front Discharge Flat 630mm (25") | Front Discharge Flat 630mm (25") | Front Discharge Flat 630mm (25") | Front Discharge Flat 630mm (25") | Two Side | Two Side |
| Input RPM | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| Floor Thickness | 20mm ¾" | 20mm ¾" | 20mm ¾" | 20mm ¾" | 20mm ¾" | 25mm 1" | 25mm 1" |
| Total Wall Thickness | 9mm ≈⅜" 6mm+3mm SS |
9mm ≈⅜" 6mm+3mm SS |
9mm ≈⅜" 6mm+3mm SS |
9mm ≈⅜" 6mm+3mm SS |
9mm ≈⅜" 6mm+3mm SS |
13mm ≈½" 10mm+3mm SS |
13mm ≈½" 10mm+3mm SS |
| Auger Thickness | Total 22 mm (7/8") with Edge Liner Base 16 mm (5/8") |
Total 22 mm (7/8") with Edge Liner Base 16 mm (5/8") |
Total 22 mm (7/8") with Edge Liner Base 16 mm (5/8") |
Total 22 mm (7/8") with Edge Liner Base 16 mm (5/8") |
Total 22 mm (7/8") with Edge Liner Base 16 mm (5/8") |
Total 26 mm (1") with Edge Liner Base 20 mm (3/4") |
Total 26 mm (1") with Edge Liner Base 20 mm (3/4") |
| SS Liners | ✓ Std | ✓ Std | ✓ Std | ✓ Std | ✓ Std | ✓ Std | ✓ Std |
| Hay Ret. Chain | ✓ Std | ✓ Std | ✓ Std | ✓ Std | ✓ Std | ✓ Std | ✓ Std |
| Loadcell Scale | 4-Point | 4-Point | 4-Point | 6-Point | 6-Point | 6-Point | 6-Point |
| Augers | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Discharge Width | 1040mm (41") Front Door |
1040mm (41") Front Door |
1040mm (41") Front Door |
1040mm (41") Front Door |
1040mm (41") Front Door |
760mm (30") Dual Side Door |
760mm (30") Dual Side Door |
| Edge Wear Liners | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
⭐ = Most Popular model · Specifications follow the LEO Product Catalog 2027 (Rev A) — contact LEO Agriculture for confirmed specifications on all models.
Need something beyond the standard HD lineup? LEO Agriculture custom-builds commercial duty heavy duty feed mixers to your exact specifications. Extended capacities beyond 45 m³, truck-mounted systems, stationary installations, and specialized discharge setups — our engineering team builds to order.
Get expert guidance on the right HD Series heavy duty feed mixer for your operation — or inquire about custom commercial builds.
Compare models
Seven heavy-duty vertical mixers, from 14 to 45 cubic meters. The full model table is already on this page. Use the comparer to put any three models side by side with the full spec sheet — no prices.
The comparer shows up to three models at a time. This link opens with the 7014HD, 7028HD, and 7045HD selected — the three most popular sizes on this page. You can swap any of them.
Both are vertical TMR mixers. The VT Series covers a smaller capacity range, with a 12 mm floor and optional stainless liners — a fit when you do not need HD commercial construction.
| VT Series | HD Series | |
|---|---|---|
| Capacity | 6–21 m³ | 14–45 m³ |
| Models | 7, from 7006VT to 7021VT | 7, from 7014HD to 7045HD |
| Floor | 12 mm (1/2″) | 20 mm (3/4″); 25 mm (1″) on the 7040HD and 7045HD |
| Stainless liners | Optional | Standard |
| Hay retention chain | — | Standard |
| Load cells | 3-point (4-point on the 7018VT and 7021VT) | 4-point (6-point on the 7025HD, 7028HD, 7040HD and 7045HD) |
