The LEO 20 Series manure spreader delivers commercial-grade performance with a stainless steel expeller — and, on the 2010–2016, a stainless steel hopper as standard (optional on the 1006 and 1008) — engineered to handle the toughest spreading conditions with zero compromises. Larger models add full SS construction: expeller throat, side walls, and front and rear panels.
The LEO 20 Series doesn't cut corners on material contact surfaces. The 1006 and 1008 include a stainless steel expeller and expeller shroud as standard, with a stainless steel hopper available as an option. The 2010–2016 include a stainless steel hopper as standard, and go further — adding full SS expeller throat, side walls, and front and rear panels for the most corrosion-resistant spreader in its class.
The stainless steel expeller shroud bottom surface eliminates material buildup, corrosion, and ensures smooth, frictionless discharge from auger to expeller — every single load, every single time.
The expeller throat — where material transitions from the auger system to the high-speed discharge expeller — is fully lined in stainless steel to prevent wear, corrosion, and clogging at the highest-impact zone.
Stainless steel side walls throughout the hopper mean no rust bleeding, no material sticking, and a dramatically longer service life compared to painted or galvanized alternatives that fail under repeated acid manure exposure.
The front panel faces constant material pressure and splash-back. Our stainless steel front panel holds up season after season without the paint failure and rust that plague conventional steel spreaders.
The rear panel endures the heaviest mechanical wear as the apron chain pushes material forward. A stainless steel rear panel ensures years of reliable operation without the premature deterioration of standard mild steel.
On the 1006 and 1008, a stainless steel expeller and expeller shroud are standard and a stainless steel hopper is optional. Step up to the 2010–2016 and you get a stainless steel hopper as standard, plus full SS construction — all five critical panels including the expeller throat, side walls, and front and rear panels.
Request Pricing
Every LEO 20 Series machine runs the same hardfaced fabricated hammer — from the 1006 to the 2016. Ground-up engineered to outlast cast hammers, cut hay and straw in manure, and deliver higher velocity spreading with less vibration.
Front edge AND both side faces hardfaced — wear protection exactly where impact occurs
Square impact geometry creates a perpendicular contact plane at all times — more consistent spreading
Wider, square tip profile — more surface area at particle contact for higher-velocity discharge
LEO hammer kits available to upgrade competitor machines — same performance advantage, any spreader
Unlike competitors who only protect the tip, LEO hardfaces both the front striking edge and the side faces — the exact zones that experience the most abrasion and wear.
The LEO hammer tip is wider and square — creating a perpendicular impact plane at every point of rotation. Competitors' rounded hammer form loses efficiency as the angle of contact changes.
The fabricated geometry aggressively shreds long-fibered material mixed into manure — eliminating wrapping, clogs, and uneven discharge across the spread width.
Each LEO hammer covers 2.8" of expeller width vs the competitor's 2.6". Working slightly harder, but the larger 22" swing diameter provides more velocity at particle contact, producing a better spread pattern with less rotating weight.
Already running a competitor machine? LEO hammer kits are available as direct replacements — bringing hardfaced fabricated performance to spreaders that shipped with inferior cast hammers.
The door opening determines how fast material moves to the expeller. More open area per unit capacity means less restriction and higher throughput. See how LEO stacks up.
| Specification | Comp. SL 110 1,000 gal |
LEO 1006 980 gal |
Comp. SLC 126 2,600 gal |
LEO 2010 2,600 gal |
Comp. SLC 232 3,200 gal |
LEO 2012 3,200 gal |
Comp. SLC 241 4,100 gal |
LEO 2016 4,200 gal |
|---|---|---|---|---|---|---|---|---|
| Hammers | 12 | 15 | 18 | 15 | 18 | 15 | 18 | 15 |
| Expeller Swing Dia. | 20" | 22" ✓ | 20" | 22" ✓ | 20" | 22" ✓ | 20" | 22" ✓ |
| Door Height (A) | 18" | 21" ✓ | 18" | 21" ✓ | 18" | 21" ✓ | 18" | 21" ✓ |
| Door Width (B) | 30" | 42" ✓ | 47" | 42" | 47" | 42" | 47" | 42" |
| Door Area (C) sq in | 540 | 882 ✓ | 846 | 882 ✓ | 846 | 882 ✓ | 846 | 882 ✓ |
| In. per Hammer (W÷H) | 2.50" | 2.80" ✓ | 2.61" | 2.80" ✓ | 2.61" | 2.80" ✓ | 2.61" | 2.80" ✓ |
| Door Area / Capacity | 54% | 90% ✓ | 33% | 34% ✓ | 26% | 28% ✓ | 21% | 21% |
| Construction Specs | ||||||||
| Expeller Shaft Dia. | 2" | 2.5" ✓ | 2.5" | 2.5" | 2.5" | 2.5" | 2.5" | 2.5" |
| Auger Flighting | .375" | .400" ✓ | .375" | .400" ✓ | .375" | .400" ✓ | .375" | .400" ✓ |
| Hopper Bottom | .179" | .250" ✓ | .179" | .375" ✓ | .25" | .375" ✓ | .25" | .375" ✓ |
| Side Panels | .135" | Mild Steel ✓ | .179" | Stainless ✓ | .250" | Stainless ✓ | .250" | Stainless ✓ |
| Spindle Diameter | 2.5" | 3" ✓ | 2.5" | 4" ✓ | 3.75" | 4" ✓ | 4.5" | 5" ✓ |
| Hubs | 8-Bolt | 8-Bolt | 8-Bolt | HD 10-Bolt ✓ | HD 10-Bolt | HD 10-Bolt | HD 10-Bolt | HD 10-Bolt |
Same door area, 3 fewer hammers. The LEO achieves the same or greater door opening area as competitors while using 3 fewer hammers — resulting in better balance, less rotating weight, and lower vibration.
Reverse auger flighting at door. An extra piece of reverse auger flighting in front of and behind the door creates pressure in the middle — forcing material out faster and more evenly.
22" expeller diameter — more tip velocity. A larger swing diameter produces more velocity at particle contact. Extra velocity, heavier hammer weight, and lower rotational speed creates a better-performing expeller with less vibration.
Dynamically balanced expeller. The LEO expeller is dynamically balanced — reducing vibration, extending bushing life, and maintaining consistent performance across the full service life of the machine.
Square hammer tip, competitor is rounded. The LEO hammer tip is wider and square — maintaining a perpendicular impact plane throughout its full arc. Competitor rounded hammers lose efficiency as contact angle shifts.
Same shaft on every model. LEO uses the same expeller shaft on all machines — 2.5" across the entire lineup — simplifying parts, reducing inventory, and proving the design is engineered right from the start.
The LEO 2010–2016 chain drive system is specified a full grade above what competitors call "heavy duty." Every chain position uses a stronger, larger pitch chain to handle the relentless demands of commercial daily spreading.
| Chain Position | LEO 20 Series | Competitor Standard | LEO Advantage |
|---|---|---|---|
| Top Auger Chain | #120 Chain | #100 Chain | 2 Grades Heavier |
| Lower Auger Chain | #120 Chain | #100 Chain | 2 Grades Heavier |
| Intermediate #2 | #100 Chain | #80 Chain | 1 Grade Heavier |
| Intermediate #1 | #80 Chain | #80 / #60 Chain | Matched or Heavier |
Both top and lower auger chains — the two hardest-working positions in the machine — run #120 pitch chain where competitors spec only #100. This means more metal, more strength, more life per chain.
All chains on the 2010–2016 run in a sealed oil bath enclosure — continuously lubricated, protected from contamination, and dramatically extending chain service life compared to exposed alternatives.
Heavier chains stretch less, wear slower, and handle shock loads better. When spreading season is short, you need a machine that keeps running — not one that breaks a chain mid-field.
Chain drive system applies to 2010, 2012, 2014, and 2016 models. 1006 and 1008 use single auger drive system.

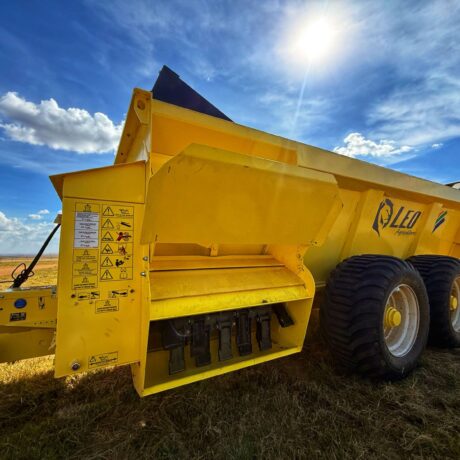

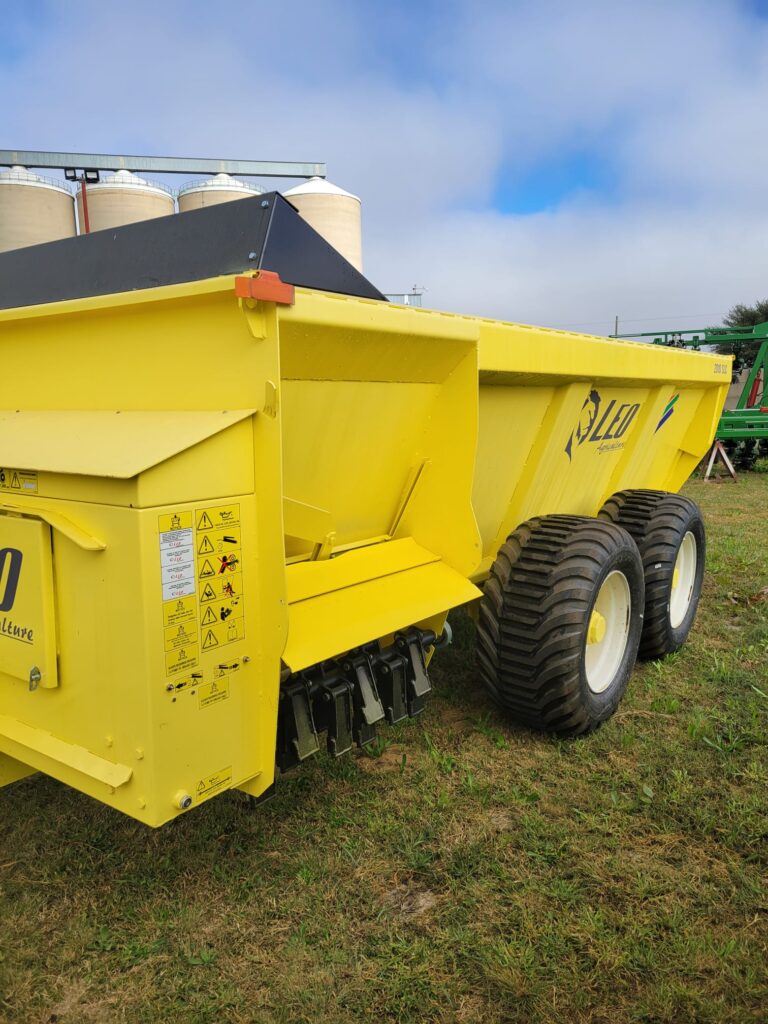

LEO's 20 Series side discharge design delivers precise field application and operational advantages that rear discharge simply can't match — purpose-built for modern farms that demand efficiency and control.
The 20 Series side discharge uses two horizontal augers working in coordination. The top auger continuously moves material rearward while the lower auger consistently supplies the expeller with an even, metered flow — preventing surge loading and delivering a precise, reliable spread rate every pass.
Side discharge gives operators the ability to spread precisely along fencerows, roadsides, and berms without turning — spreading exactly where it's needed with no overshoot. This means tighter headlands, less waste, and significantly better nutrient placement on irregular fields.
All chains run inside a sealed oil bath enclosure — dramatically extending chain life, reducing maintenance intervals, and eliminating the constant re-greasing that exposed chains demand.
The expeller is precision-balanced to minimize vibration at high RPM — protecting bearings, reducing structural stress, and ensuring consistent spread width across the full capacity range.
Included splash guards and an expeller deflector shield protect the tractor, operator, and surrounding areas while maintaining maximum spread distance and pattern uniformity.
Fabricated hammers, stainless steel contact surfaces, and sealed chain drive combine to deliver a spreader that spends far more time in the field and far less time in the shop — maximizing your ROI season after season.
Metered dual-auger delivery combined with the high-speed expeller ensures a reliable, repeatable spread pattern — giving you confidence in even nutrient distribution across every acre, every pass.
The high-velocity expeller delivers an impressive spread width for its class — reducing the number of passes required per field, saving time, reducing fuel consumption, and minimizing compaction.
Six models spanning 3,700L to 16,000L — find the right capacity for your operation.
20 SERIES
Side Discharge · SS Expeller · Hopper Optional
Compact side discharge spreader with the same fabricated hammers as the large machines. Large door opening delivers superior ability to handle pen-packed manure with ease.
20 SERIES
Side Discharge · SS Expeller · Hopper Optional
Steps up from the 1006 with increased capacity and the same side discharge design. Large door opening and fabricated hammers handle pen-packed manure that would bog down lesser machines.
20 SERIES
MOST POPULAR
Side Discharge Manure Spreader · SS Hopper & Expeller

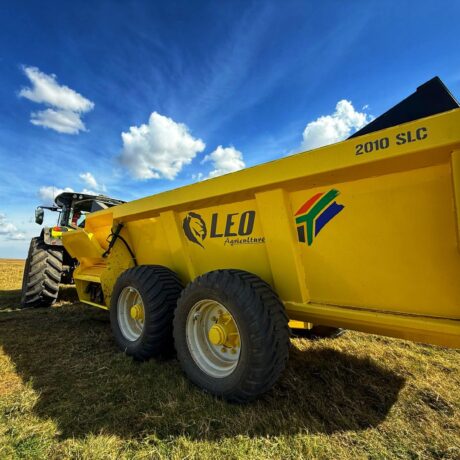

The 2010 brings serious side discharge capacity to commercial dairy and beef operations. Stainless steel hopper and expeller, dual auger flow, and precision spreading for 10,000L loads.
20 SERIES
FLAGSHIP
Commercial Side Discharge · SS Hopper & Expeller
At 12,000L / 3,200 gal, the 2012 is purpose-built for high-output commercial dairy operations. Engineered for demanding daily spreading schedules with full SS construction throughout.
20 SERIES
Commercial Side Discharge · SS Hopper & Expeller
Stepping into true large-scale operation, the 2014 handles 14,000L / 3,700 gal loads with authority. Designed for contract spreading and high-volume commercial dairy and feedlot operations.
20 SERIES
Flagship Commercial Side Discharge · SS Hopper & Expeller
The largest standard 20 Series model — 16,000L / 4,200 gal flagship capacity for maximum-throughput commercial operations. Stainless steel hopper and expeller, built to dominate the biggest spreading jobs.
Select a model to view full specs
Side Discharge · SS Expeller · Hopper Optional · Single Auger
| Struck Capacity | 3,700L (980 gal) |
| Heaped Capacity | 6 m³ (212 ft³) |
| Loading Height | 1.61m (63 in) |
| Min Tractor Power | 45 kW (60 Hp) |
| Input RPM | 540 |
| Max Load Weight | 4,000 kg (8,800 lbs) |
| Discharge Type | Side Discharge |
| Auger System | Single Auger Drive |
| Door Opening | Large — Pen-Packed Ready |
| Hopper | Optional |
| Expeller | Stainless Steel |
| SS Expeller Shroud | Standard (.250") |
| Side Panels | Mild Steel |
| Front Panel | Mild Steel |
| Rear Panel | Mild Steel |
| Hopper Bottom | .250" Steel |
| Auger Flighting | .400" |
| Expeller Shaft | 2.5" Diameter |
| Expeller Swing Dia. | 22" |
| Hammers | 15 — Fabricated, Hardfaced |
| Door Opening (H × W) | 21" × 42" (882 sq in) |
| Spindle Diameter | 3" |
| Hubs | 8-Bolt |
| Chain Drive | Standard (No Oil Bath) |
| Splash Guards | Optional |
Side Discharge · SS Expeller · Hopper Optional · Single Auger
| Struck Capacity | 5,000L (1,350 gal) |
| Heaped Capacity | 8 m³ (285 ft³) |
| Loading Height | 2.01m (79 in) |
| Min Tractor Power | 63 kW (85 Hp) |
| Input RPM | 540 |
| Max Load Weight | 5,000 kg (11,000 lbs) |
| Discharge Type | Side Discharge |
| Auger System | Single Auger Drive |
| Door Opening (H × W) | 21" × 42" (882 sq in) |
| Hopper | Optional |
| Expeller | Stainless Steel |
| SS Expeller Shroud | Standard (.250") |
| Side Panels | Mild Steel |
| Front Panel | Mild Steel |
| Rear Panel | Mild Steel |
| Hopper Bottom | .250" Steel |
| Auger Flighting | .400" |
| Expeller Shaft | 2.5" Diameter |
| Expeller Swing Dia. | 22" |
| Hammers | 15 — Fabricated, Hardfaced |
| Spindle Diameter | 3" |
| Hubs | 8-Bolt |
| Chain Drive | Standard (No Oil Bath) |
| Splash Guards | Optional |
Side Discharge Manure Spreader · SS Hopper & Expeller
| Struck Capacity | 10,000L (2,600 gal) |
| Heaped Capacity | 15 m³ (540 ft³) |
| Loading Height | 1.94m (76 in) |
| Min Tractor Power | 90 kW (120 Hp) |
| Input RPM | 1,000 |
| Max Load Weight | 11,800 kg (26,000 lbs) |
| Discharge Type | Side Discharge Expeller |
| Hopper | Stainless Steel |
| Expeller | Stainless Steel |
| SS Expeller Shroud | Standard |
| SS Expeller Throat | Standard |
| SS Side Walls | Standard |
| SS Front & Rear Panel | Standard |
| Auger System | Dual Horizontal Augers |
| Hammer Type | Fabricated (Improved) |
| Chain Drive | Oil Bath (Sealed) |
| Splash Guards | Standard |
| Expeller Deflector | Standard |
Commercial Side Discharge · SS Hopper & Expeller
| Struck Capacity | 12,000L (3,200 gal) |
| Heaped Capacity | 18 m³ (645 ft³) |
| Loading Height | 2.29m (90 in) |
| Min Tractor Power | 100 kW (140 Hp) |
| Input RPM | 1,000 |
| Max Load Weight | 13,200 kg (29,000 lbs) |
| Discharge Type | Side Discharge Expeller |
| Hopper | Stainless Steel |
| Expeller | Stainless Steel |
| SS Expeller Shroud | Standard |
| SS Expeller Throat | Standard |
| SS Side Walls | Standard |
| SS Front & Rear Panel | Standard |
| Auger System | Dual Horizontal Augers |
| Hammer Type | Fabricated (Improved) |
| Chain Drive | Oil Bath (Sealed) |
| Splash Guards | Standard |
| Expeller Deflector | Standard |

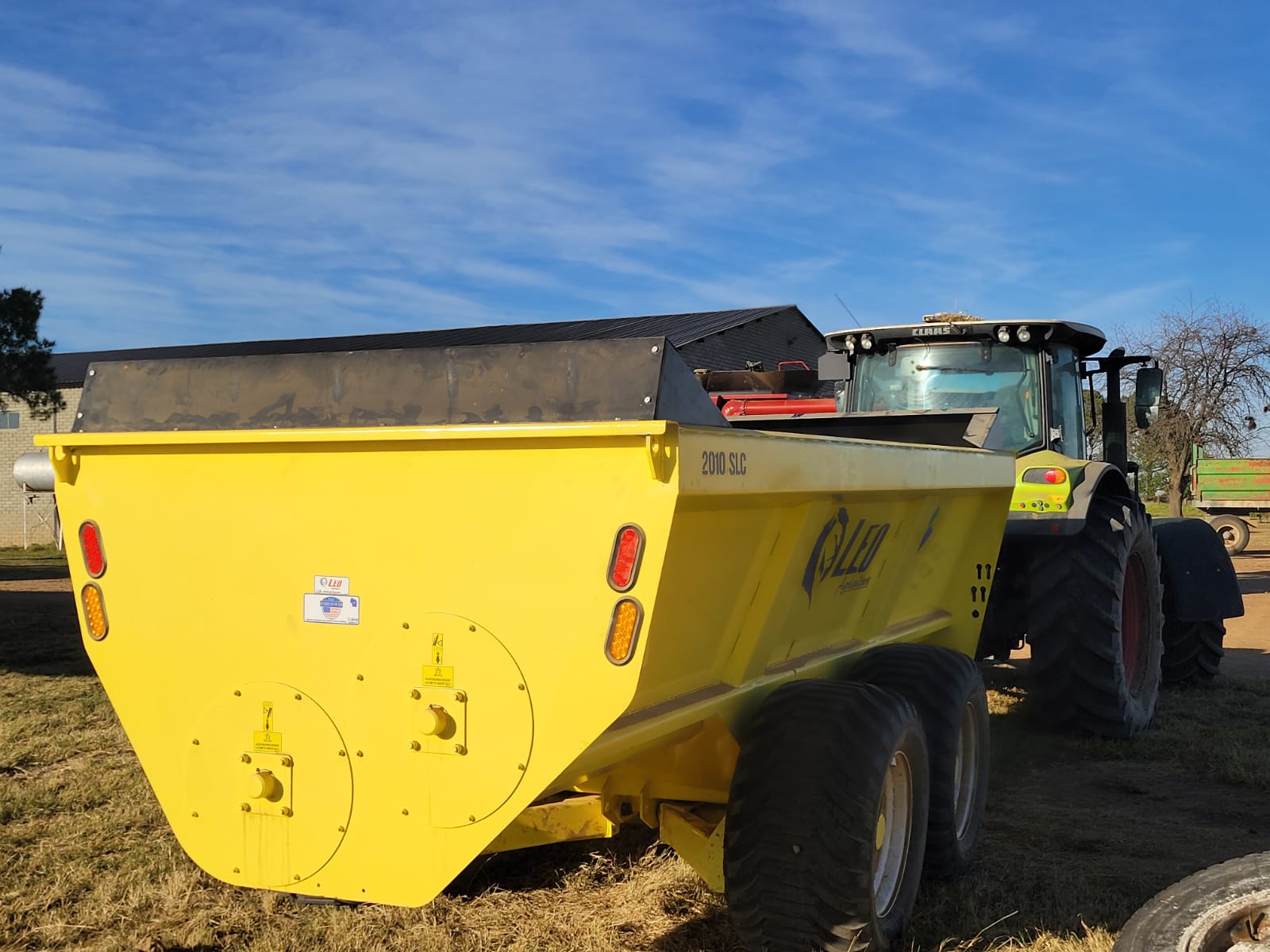

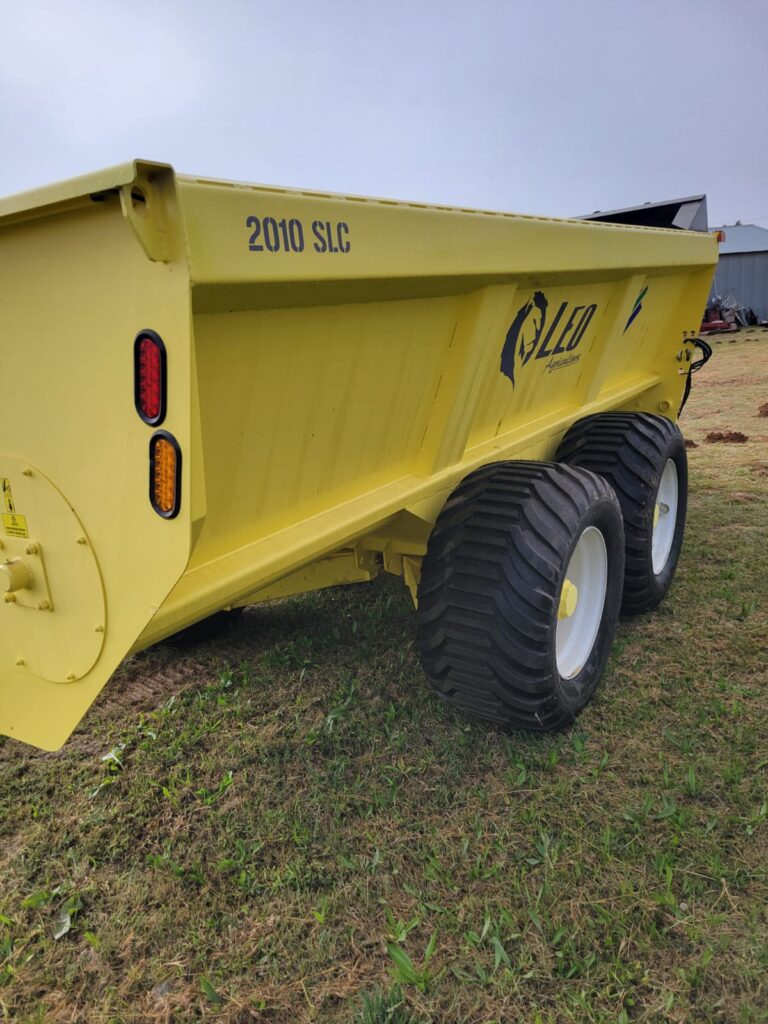

Photos show the LEO 2010 from the same 20 Series. LEO 2012 photos coming soon.
Commercial Side Discharge · SS Hopper & Expeller
| Struck Capacity | 14,000L (3,700 gal) |
| Heaped Capacity | 21 m³ (740 ft³) |
| Loading Height | 2.29m (90 in) |
| Min Tractor Power | 123 kW (165 Hp) |
| Input RPM | 1,000 |
| Max Load Weight | 16,800 kg (37,000 lbs) |
| Discharge Type | Side Discharge Expeller |
| Hopper | Stainless Steel |
| Expeller | Stainless Steel |
| SS Expeller Shroud | Standard |
| SS Expeller Throat | Standard |
| SS Side Walls | Standard |
| SS Front & Rear Panel | Standard |
| Auger System | Dual Horizontal Augers |
| Hammer Type | Fabricated (Improved) |
| Chain Drive | Oil Bath (Sealed) |
| Splash Guards | Standard |
| Expeller Deflector | Standard |
Photos show the LEO 2010 from the same 20 Series. LEO 2014 photos coming soon.
Flagship Commercial Side Discharge · SS Hopper & Expeller
| Struck Capacity | 16,000L (4,200 gal) |
| Heaped Capacity | 24 m³ (847 ft³) |
| Loading Height | 2.62m (103 in) |
| Min Tractor Power | 142 kW (190 Hp) |
| Input RPM | 1,000 |
| Max Load Weight | 19,000 kg (42,000 lbs) |
| Discharge Type | Side Discharge Expeller |
| Hopper | Stainless Steel |
| Expeller | Stainless Steel |
| SS Expeller Shroud | Standard |
| SS Expeller Throat | Standard |
| SS Side Walls | Standard |
| SS Front & Rear Panel | Standard |
| Auger System | Dual Horizontal Augers |
| Hammer Type | Fabricated (Improved) |
| Chain Drive | Oil Bath (Sealed) |
| Splash Guards | Standard |
| Expeller Deflector | Standard |
Photos show the LEO 2010 from the same 20 Series. LEO 2016 photos coming soon.
All 6 models at a glance — scroll right on mobile
| Specification | 1006 | 1008 | 2010 | 2012 | 2014 | 2016 ★ |
|---|---|---|---|---|---|---|
| Capacity (Liters) | 3,700L | 5,000L | 10,000L | 12,000L | 14,000L | 16,000L |
| Capacity (Liters / Gal) | 3,700L 980 gal |
5,000L 1,350 gal |
10,000L 2,600 gal |
12,000L 3,200 gal |
14,000L 3,700 gal |
16,000L 4,200 gal |
| Min Power | 45 kW (60 Hp) | 63 kW (85 Hp) | 90 kW (120 Hp) | 100 kW (140 Hp) | 123 kW (165 Hp) | 142 kW (190 Hp) |
| Heaped Capacity | 6 m³ (212 ft³) | 8 m³ (285 ft³) | 15 m³ (540 ft³) | 18 m³ (645 ft³) | 21 m³ (740 ft³) | 24 m³ (847 ft³) |
| Loading Height | 1.61m (63 in) | 2.01m (79 in) | 1.94m (76 in) | 2.29m (90 in) | 2.29m (90 in) | 2.62m (103 in) |
| Max Load Weight | 4,000 kg (8,800 lbs) | 5,000 kg (11,000 lbs) | 11,800 kg (26,000 lbs) | 13,200 kg (29,000 lbs) | 16,800 kg (37,000 lbs) | 19,000 kg (42,000 lbs) |
| Input RPM | 540 | 540 | 1,000 | 1,000 | 1,000 | 1,000 |
| Discharge Type | Side Discharge | Side Discharge | Side Discharge | Side Discharge | Side Discharge | Side Discharge |
| Auger System | Single Auger | Single Auger | Dual Auger | Dual Auger | Dual Auger | Dual Auger |
| Door Opening | Large | Large | Standard | Standard | Standard | Standard |
| SS Hopper | Optional | Optional | ✓ Std | ✓ Std | ✓ Std | ✓ Std |
| SS Expeller | ✓ Std | ✓ Std | ✓ Std | ✓ Std | ✓ Std | ✓ Std |
| SS Expeller Shroud | ✓ .250" | ✓ .250" | ✓ Std | ✓ Std | ✓ Std | ✓ Std |
| SS Expeller Throat | — | — | ✓ Std | ✓ Std | ✓ Std | ✓ Std |
| SS Side Walls | Mild Steel | Mild Steel | ✓ Std | ✓ Std | ✓ Std | ✓ Std |
| SS Front & Rear Panel | Mild Steel | Mild Steel | ✓ Std | ✓ Std | ✓ Std | ✓ Std |
| Hammer Type | Fabricated | Fabricated | Fabricated | Fabricated | Fabricated | Fabricated |
| Chain Drive | Standard (No Oil Bath) |
Standard (No Oil Bath) |
Oil Bath (Sealed) |
Oil Bath (Sealed) |
Oil Bath (Sealed) |
Oil Bath (Sealed) |
| Top Auger Chain | — | — | #120 | #120 | #120 | #120 |
| Lower Auger Chain | — | — | #120 | #120 | #120 | #120 |
| Intermediate #2 Chain | — | — | #100 | #100 | #100 | #100 |
| Intermediate #1 Chain | — | — | #80 | #80 | #80 | #80 |
Specifications are from the LEO Product Catalog 2026. Contact LEO Agriculture at (608) 480-8512 or info@leoagriculture.com for confirmed specifications on all models.
Talk to our team about the right model for your capacity needs. Stainless steel hopper and expeller — built to outlast every load, every season.
